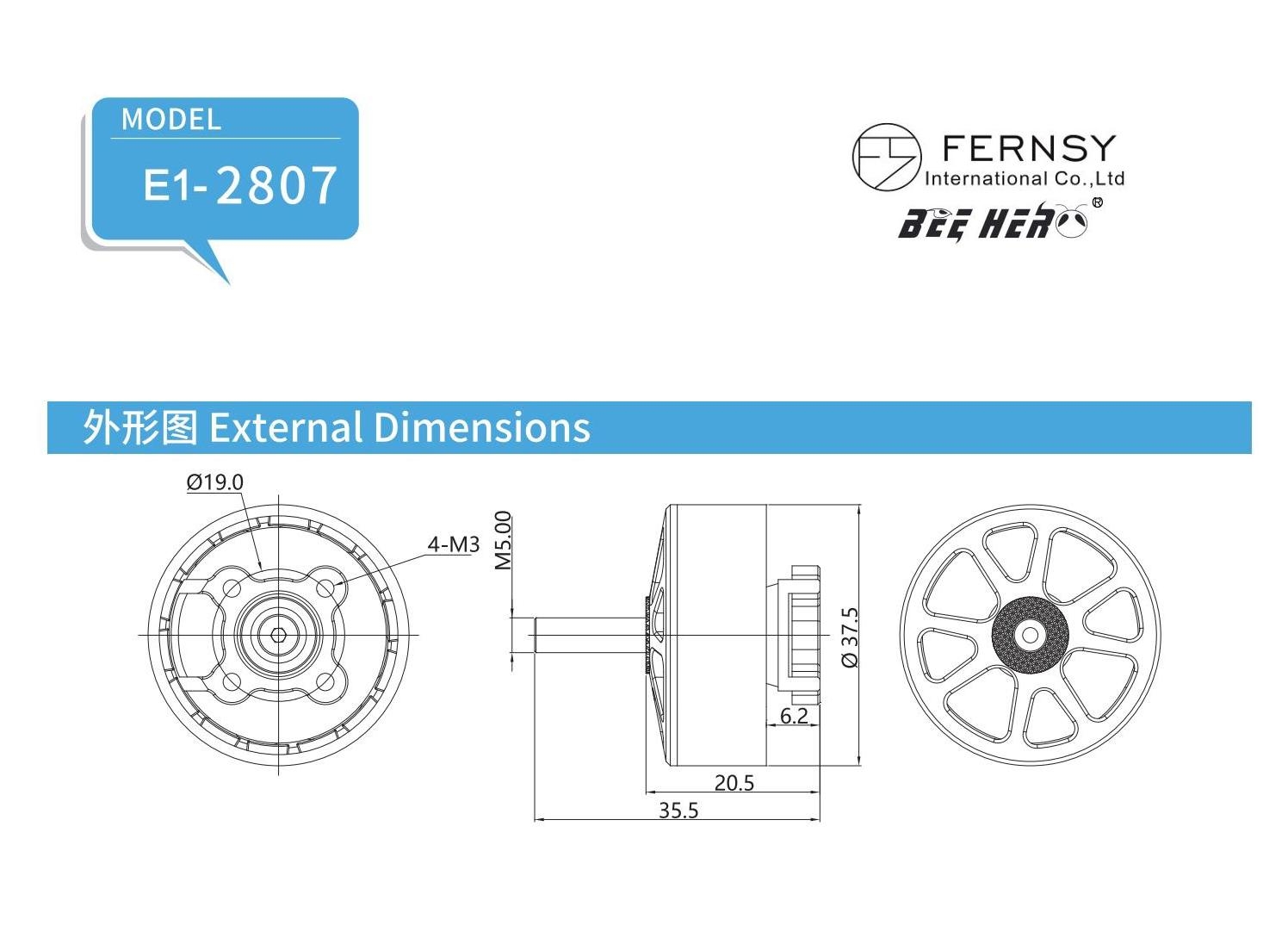

Outer rotor brushless motor
Pure copper coil, efficient heat dissipation, stable operation, high-quality bearings, high-temperature resistant copper wire windings ensure the stability and safe operation of the motor during continuous high-throttle flight.
|
KV
|
N/P
|
Shaft diameter
|
Net weight
|
Inter phase
resistance
|
Work voltage
|
No load current （10V）
|
Max Power
|
Max current
|
|
1300
|
12N14P
|
5mm
|
52.3g
|
70.8mΩ
|
6S
|
0.96A
|
920.2W
|
39.3A
|
|
Voltage (V)
|
Propeller
|
KV
|
Throttle
|
Current (A)
|
Power(W)
|
Thrust(g)
|
(RPM)
|
Effciency
|
Temperature
|
|
24
|
HQ 7×3.5×3
|
1300
|
30%
|
2.06
|
49.3
|
266.3
|
7742
|
5.41
|
60˚C
|
|
40%
|
3.89
|
92.9
|
425.2
|
9601
|
4.57
|
|
50%
|
6.91
|
165.3
|
658.6
|
11735
|
3.98
|
|
60%
|
11.61
|
277.5
|
982.85
|
14070
|
3.55
|
|
70%
|
17.56
|
416.9
|
1355.3
|
16295
|
3.26
|
|
80%
|
24.88
|
588.9
|
1693.1
|
18086
|
2.91
|
|
90%
|
31.08
|
731.4
|
1984.2
|
19803
|
2.72
|
|
100%
|
39.34
|
920.9
|
2305.8
|
21071
|
2.53
|
